5B619T 5B11T
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100511
-
- alternative name: Chicago Radio Lab

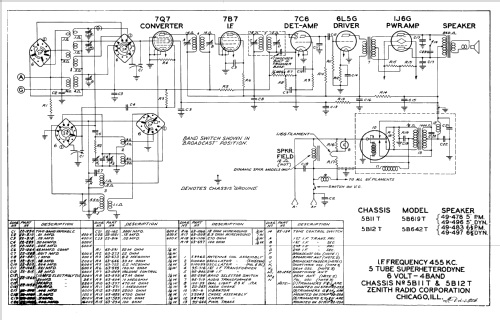

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: 5B619T 5B11T - Zenith Radio Corp.; Chicago,
- Notes
- Farm radio. 4 wavebands: BC, Police, SW, 25m spread. Vibrator for +B. Also available with p.m. speaker.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
