5D027Z Consoltone Ch= 5C01Z
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 241894
-
- alternative name: Chicago Radio Lab

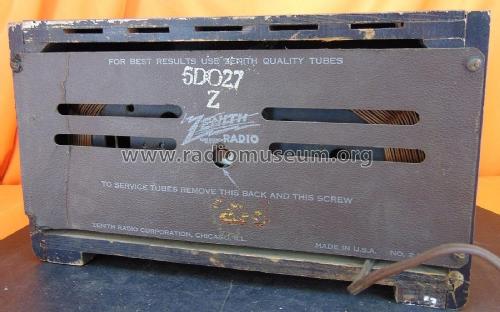

With courtesy by Ebayseller tvezgoin
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 5D027Z Consoltone Ch= 5C01Z - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 13 x 7.625 x 5.625 inch / 330 x 194 x 143 mm
- Notes
-
Self Contained Loop Antenna.
Cabinet in lime-walnut veneers and brown fluted ends.
- Mentioned in
- Rider's Perpetual, Volume 15 = 1947 and before
