5G537 Ch= 5A02
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67594
-
- alternative name: Chicago Radio Lab
Beitman
Copy gen. von John Goller Radio Attic
With courtesy by Bill Buchsbaum back view
With courtesy by Bill Buchsbaum
With courtesy by Bill Buchsbaum dial view
With courtesy by Bill Buchsbaum

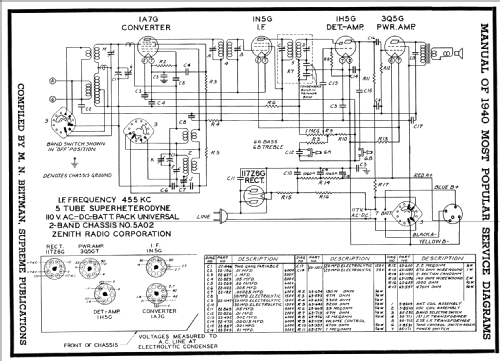

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Line / Batteries (any type)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 5G537 Ch= 5A02 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 22.9 x 12.1 x 12.4 inch / 582 x 307 x 315 mm
- Notes
- Farm Radio
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Mentioned in
- Zenith Radio The Glory Years 1936-1945
- Literature/Schematics (1)
- Machine Age to Jet Age II (page 323.)
