• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67607

• • alternative name: Chicago Radio Lab

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6F6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

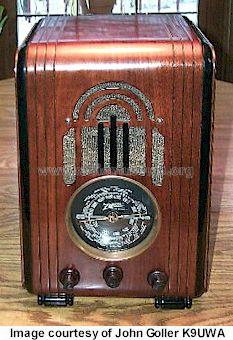

• Model: 5L228 5-L-228 Ch=5525-A - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 10.3 x 15.3 x 9.5 inch / 262 x 389 x 241 mm

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Zenith Radio The Glory Years 1936-1945
