5S042AT 5-S-042-AT Ch=5C63-AT

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1946 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
67638

- alternative name: Chicago Radio Lab

Schematics

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 414886) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (3)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 414887) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (3)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 414888) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (3)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 414889) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (3)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 414890) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (3)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 779915) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 779916) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

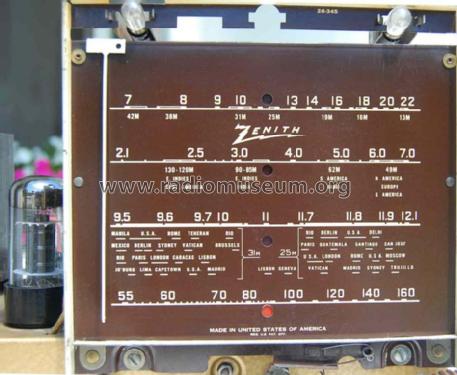

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 693735) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2687263) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2698639) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2698636) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2698638) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2698547) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)
Doppelt

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2698634) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2698637) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2687261) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2687262) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2687260) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 2687264) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 693736) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 779917) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 779918) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

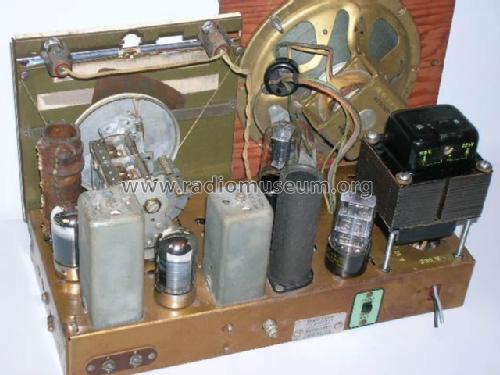

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 779919) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 779921) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 779922) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

5S042AT 5-S-042-AT Ch=5C63-AT; Zenith Radio Corp.; (ID = 779975) Radio — Zenith Radio Corp.; 5S042AT 5-S-042-AT Ch=5C63-AT (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
7Q7 7A7 6SQ7GT 6K6GT 6X5GT

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Wave bands
Broadcast, Short Wave(s) and Police.

Power type and voltage
Alternating Current supply (AC) / 115/225 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16.5 cm = 6.5 inch

Material
Wooden case

from Radiomuseum.org
Model: 5S042AT 5-S-042-AT Ch=5C63-AT - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
460 x 245 x 195 mm / 18.1 x 9.6 x 7.7 inch

Notes
for 25-100cycle mains; BC, Police, 2xSW bands; Dial lamps: 2x *44 (6,3V/0,25A).

Net weight (2.2 lb = 1 kg)
7.5 kg / 16 lb 8.3 oz (16.52 lb)

External source of data
Ernst Erb

Circuit diagram reference
Rider's Perpetual, Volume 15 = 1947 and before
