5S319 5-S-319 Ch=5529

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1939

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
67658

- alternative name: Chicago Radio Lab

Schematics

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 321646) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (3)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 321647) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (3)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 321648) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (3)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 321649) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (3)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 321650) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (3)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 321651) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (3)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 321652) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (3)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 321653) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (3)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1895869) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 2273925) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 651096) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 651099) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 651097) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 50336) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
Copy gen. von Joe Verville Radio Attic

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 89404) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 267390) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
By courtesy of William Kendrick, USA

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1029495) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1029496) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1029497) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1225116) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1225118) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1225119) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1225120) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1225122) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1231635) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
Ebay Seller 1radionut Item 320897658135

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1231636) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
Ebay Seller 1radionut Item 320897658135

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1231637) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
Ebay Seller 1radionut Item 320897658135

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1231638) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
Ebay Seller 1radionut Item 320897658135

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1231639) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
Ebay Seller 1radionut Item 320897658135

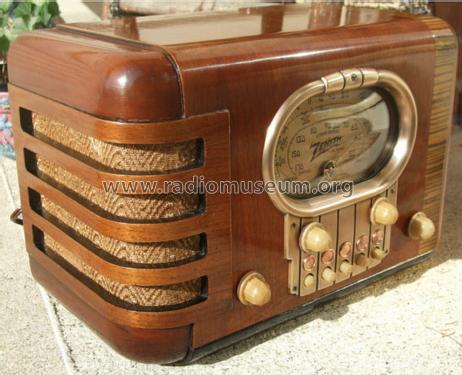

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1231641) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
Ebay Seller 1radionut Item 320897658135

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1235371) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1487087) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1560994) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1610691) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
eBay item number:201032630114

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1675128) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (2)
Scanned from the Zenith Folder for 1939.

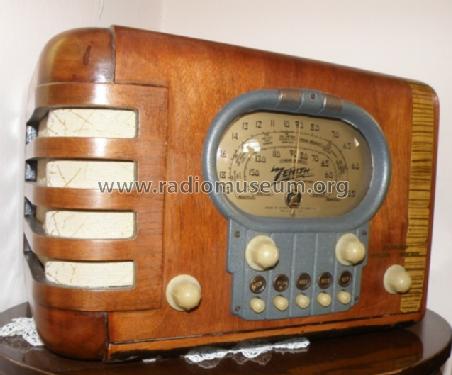

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1723156) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 1723161) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

5S319 5-S-319 Ch=5529; Zenith Radio Corp.; (ID = 2296637) Radio — Zenith Radio Corp.; 5S319 5-S-319 Ch=5529 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
6A8G 6K7G 6Q7G 6K6G 6X5G

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Wave bands
Broadcast and Short Wave (SW).

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

Material
Wooden case

from Radiomuseum.org
Model: 5S319 5-S-319 Ch=5529 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel with Push Buttons.

Dimensions (WHD)
13 x 8.9 x 7.4 inch / 330 x 226 x 188 mm

Price in first year of sale
30.00 $

External source of data
Ernst Erb

Source of data
The Radio Collector's Directory and Price Guide 1921 - 1965

Circuit diagram reference
Rider's Perpetual, Volume 9 = 1938 and before

Mentioned in
Collector's Guide to Antique Radios 4. Edition

Literature/Schematics (1)
Zenith Radio The Glory Years 1936-1945

Literature/Schematics (2)
Table Top Radios Vol. 1 Stein 98 (page 171.)

Literature/Schematics (3)
-- Original prospect or advert (The Zenith Folder for 1939.)

Other Models
Here you find 4496 models, 4101 with images and 3615 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL

Collections | Museums | Literature

Collections

The model 5S319 is part of the collections of the following members.

Forum

Forum contributions about this model: Zenith Radio Corp.;: 5S319 5-S-319 Ch=5529

Threads: 1 | Posts: 2

Hello everyone, I am working on a zenith 5s319 and was hoping someone could help with my troubleshooting. The set performs well on automatic and shortwave bands but I recieve only quiet static on broadcast. I have gone through the alignment procedure accurately but this has not solved the problem. The set is re-capped, all resistors tested, and IF aligned. All I am able to pick up is a very faint signal up around 1500 kc from my signal generator. If anyone is able to suggest how I should troubleshoot this issue, please respond. Any help is greatly appreciated.

Cordell Drohomereski, 27.Nov.18

Weitere Posts (2) zu diesem Thema.
