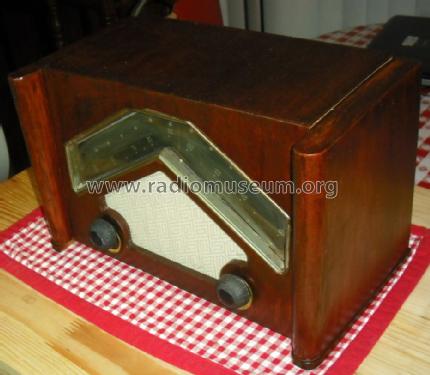

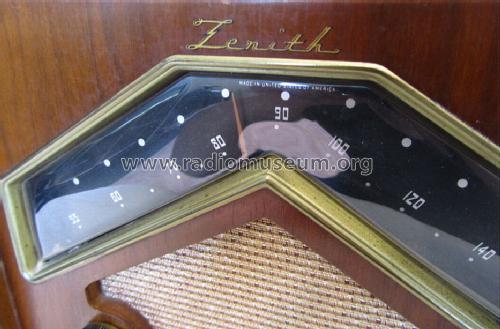

6D029 Consoltone (6DO29) Ch= 6C01

• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67704

• • alternative name: Chicago Radio Lab

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 14C7 14Q7 14C7 12SQ7GT 35L6G 35Z5G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 6D029 Consoltone Ch= 6C01 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13.75 x 8.75 x 8.75 inch / 349 x 222 x 222 mm

• Notes

• Self Contained Loop Antenna. Walnut. See also model 6D029G in Lime-Walnut.OPA price 33.75 $.

• Price in first year of sale
• 39.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Dat 11-46, set 9, folder 469-35)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (April 1946 page 34.)

• Literature/Schematics (3)
• -- Original prospect or advert (The Zenith Folder unknown date.)
