6D030 (6D030Z) 6C05 (6C05Z) Late

Zenith Radio Corp.; Chicago, IL

Dati

Forum

Immagini

Collezioni

Paese
USA (Stati Uniti d'America)

Produttore / Marca
Zenith Radio Corp.; Chicago, IL

Anno
1946

Categoria
Radio (o sintonizzatore del dopoguerra WW2)

Radiomuseum.org ID
67705

- alternative name: Chicago Radio Lab

Immagini
Schemi

6D030 6C05 ; Zenith Radio Corp.; (ID = 484884) Radio — Zenith Radio Corp.; 6D030 6C05 (3)

6D030 6C05 ; Zenith Radio Corp.; (ID = 484885) Radio — Zenith Radio Corp.; 6D030 6C05 (3)

6D030 6C05 ; Zenith Radio Corp.; (ID = 490205) Radio — Zenith Radio Corp.; 6D030 6C05 (3)

6D030 6C05 ; Zenith Radio Corp.; (ID = 490207) Radio — Zenith Radio Corp.; 6D030 6C05 (3)

6D030 6C05 ; Zenith Radio Corp.; (ID = 490208) Radio — Zenith Radio Corp.; 6D030 6C05 (3)

6D030 6C05 ; Zenith Radio Corp.; (ID = 490209) Radio — Zenith Radio Corp.; 6D030 6C05 (3)

6D030 6C05 ; Zenith Radio Corp.; (ID = 3028277) Radio — Zenith Radio Corp.; 6D030 6C05 (3)

6D030 6C05 ; Zenith Radio Corp.; (ID = 1843303) Radio — Zenith Radio Corp.; 6D030 6C05 (1)
American Radio Design Greg Mercurio

6D030 6C05 ; Zenith Radio Corp.; (ID = 626551) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 89425) Radio — Zenith Radio Corp.; 6D030 6C05 (2)

6D030 6C05 ; Zenith Radio Corp.; (ID = 626555) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 51168) Radio — Zenith Radio Corp.; 6D030 6C05 (2)
Copy gen. von Lynn Toppo Radio Attic

6D030 6C05 ; Zenith Radio Corp.; (ID = 267391) Radio — Zenith Radio Corp.; 6D030 6C05 (2)
By courtesy of William Kendrick, USA

6D030 6C05 ; Zenith Radio Corp.; (ID = 268757) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 268758) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 323527) Radio — Zenith Radio Corp.; 6D030 6C05 (2)

6D030 6C05 ; Zenith Radio Corp.; (ID = 323528) Radio — Zenith Radio Corp.; 6D030 6C05 (2)

6D030 6C05 ; Zenith Radio Corp.; (ID = 323529) Radio — Zenith Radio Corp.; 6D030 6C05 (2)

6D030 6C05 ; Zenith Radio Corp.; (ID = 495994) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 495995) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 495996) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 495997) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 626547) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 626552) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

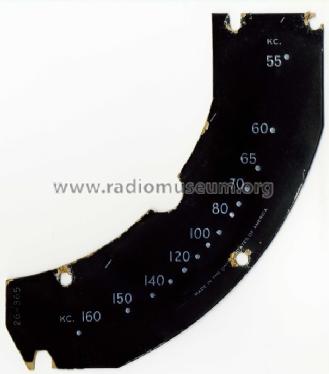

6D030 6C05 ; Zenith Radio Corp.; (ID = 626554) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 626556) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 840766) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 840768) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 840769) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 840770) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 840771) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 840772) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 950740) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

6D030 6C05 ; Zenith Radio Corp.; (ID = 1843304) Radio — Zenith Radio Corp.; 6D030 6C05 (1)
American Radio Design Greg Mercurio

6D030 6C05 ; Zenith Radio Corp.; (ID = 1843305) Radio — Zenith Radio Corp.; 6D030 6C05 (1)
American Radio Design Greg Mercurio

6D030 6C05 ; Zenith Radio Corp.; (ID = 1843306) Radio — Zenith Radio Corp.; 6D030 6C05 (1)
American Radio Design Greg Mercurio

6D030 6C05 ; Zenith Radio Corp.; (ID = 2798334) Radio — Zenith Radio Corp.; 6D030 6C05 (1)

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

Specifiche tecniche

Numero di tubi
6

Valvole
12SJ7GT 12SA7GT 12BA6 12SQ7GT 35L6GT 35Z5GT

Principio generale
Supereterodina (in generale); ZF/IF 455 kHz

Gamme d'onda
Solo onde medie (OM).

Tensioni di funzionamento
Alimentazione universale (doppia: CC/CA) / 115 Volt

Altoparlante
AP magnetodinamico (magnete permanente e bobina mobile)

Materiali
Mobile in legno

Radiomuseum.org

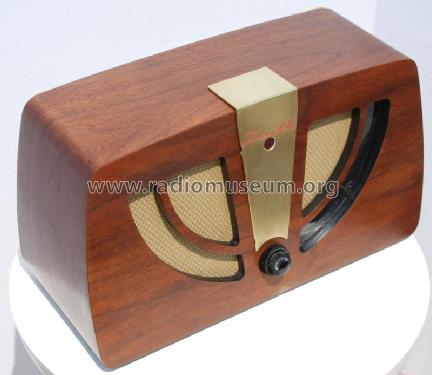

Modello: 6D030 6C05 [Late] - Zenith Radio Corp.; Chicago,

Forma
Soprammobile compatto/con bordi arrotondati/midget senza pulsantiera/tastiera.<= 35 cm (Sometimes with handle but for mains only).

Dimensioni (LxAxP)
13.5 x 7.75 x 4.5 inch / 343 x 197 x 114 mm

Annotazioni
Attention:

Suffix Z indicates an undefined number of chassis variations, where one ore more tubes of the basic complement were replaced.

Just after WW2 there was some material shortage. Zenith had to modify the basic model to accept available alternative tube types. Hence Octal, Lock-in and 7pin miniature types had to be mutually adapted by changing the sockets. Such factory modified chassis and radio models got the suffix Z. Zenith also recommended these alterations for service. Such models maintained of course the initial name without Z. All such numerous variant combinations can only be distinguished by close examination, but not by just a view.

A single chassis may contain octal, lock-in, and miniature buttom tubes. If an original tube is replaced with an alternate, the socket must also be replaced.

Listed above is the basic tube complement.

Alternates that may be found are as follows:
Original: Alternate:
12SA7GT.. 12BE6 or 14Q7
12SQ7GT.. 12AT6
35Z5GT... 35W4
.

Fonte esterna dei dati
Ernst Erb

Fonte dei dati
The Radio Collector's Directory and Price Guide 1921 - 1965

Riferimenti schemi
Rider's Perpetual, Volume 15 = 1947 and before

Bibliografia
Collector's Guide to Antique Radios 4. Edition (Riders page 17-10, changes.)

Letteratura / Schemi (1)
Photofact Folder, Howard W. SAMS (Dat 8-46, set 3, folder 463-24)

Altri modelli
In questo link sono elencati 4496 modelli, di cui 4101 con immagini e 3615 con schemi.
Elenco delle radio e altri apparecchi della Zenith Radio Corp.; Chicago, IL
