6G004Y Global Ch=6C41
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67768
-
- alternative name: Chicago Radio Lab
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 110-120/ 90 & 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

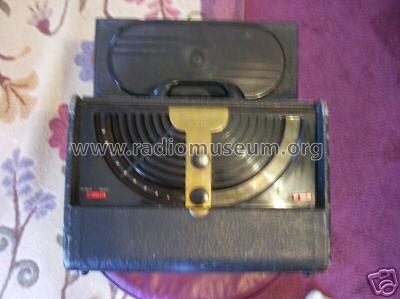

- Model: 6G004Y Global Ch=6C41 - Zenith Radio Corp.; Chicago,
- Shape
- Portable set > 8 inch (also usable without mains)
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 20, Folder 4710-35)
- Other Models
-
Here you find 4496 models, 4101 with images and 3615 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Collections
The model 6G004Y Global is part of the collections of the following members.
Forum contributions about this model: Zenith Radio Corp.;: 6G004Y Global Ch=6C41
Threads: 1 | Posts: 3
Helo,
I have this model. It has a loud hum, suggesting I need to replace caps. However, I noticed someone replaced power amplification tube 3Q5GT (pentode) with tube 1G4 (triode)... From what I can see they are not equivalent. Should I first try to find a 3Q5GT?
Alain Dufour, 08.Jan.11
