• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67783

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6D8G 6S7G 6T7G 6L5G 1J6G 6ZY5G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / =6/~115 Volt

• Loudspeaker
• Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

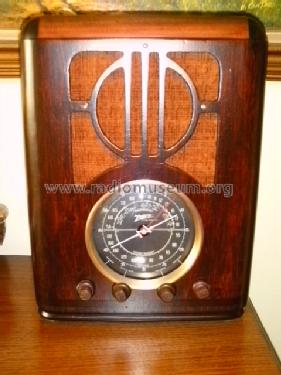

• Model: 6J230 Ch= 5642 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 13.8 x 17.6 x 9.5 inch / 351 x 447 x 241 mm

• Notes

• Farm Radio

  Wood with full faux finish.

• Price in first year of sale
• 60.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Zenith Radio The Glory Years 1936-1945

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 319.)
