• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67788

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6D8G 6S7G 6T7G 6G6G 6F6G 6F6G 6ZY5G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Line / Batteries (any type) / =6/~115 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

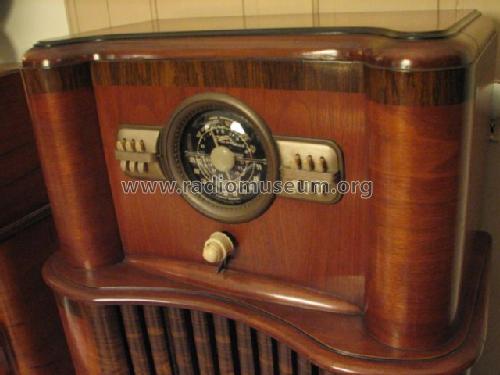

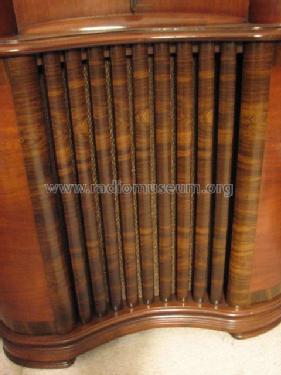

• Model: 6J463 6-J-463 Ch=5579 5679 - Zenith Radio Corp.; Chicago,

• Shape
• Console with Push Buttons.

• Notes
• Farm Radio

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition
