• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 253629

• • alternative name: Chicago Radio Lab

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7GT 6SA7GT 6SK7GT 6SQ7GT 6K8GT 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 6R087 Ch= 6C22 [Lime-Walnut] - Zenith Radio Corp.; Chicago,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 0 x 36.375 x 0 inch / 0 x 924 x 0 mm

• Notes

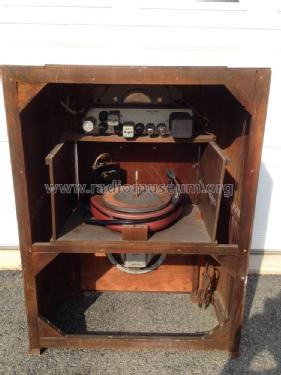

• Lime-Walnut cabinet with roll-out phono.

• Literature/Schematics (3)

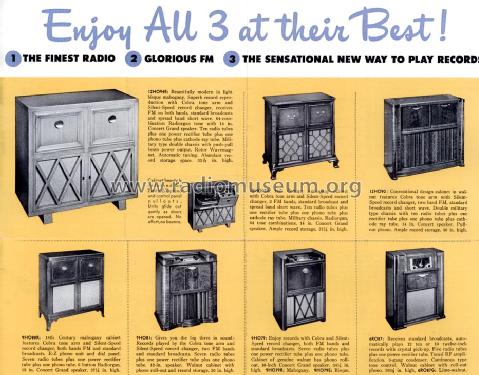

• -- Original prospect or advert (The Zenith Folder unknown date.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
