6R886 "Modern" Ch= 6E02
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67855
-
- alternative name: Chicago Radio Lab
6-R-886 (Ch=6E02)
Zenith-6-R-886 (1948) Copy from Ebay
6-R-886 (Ch=6E02) back-view with modelnumber
6-R-886 (Ch=6E02) chassis-sticker-view
6-R-886 (Ch=6E02) dial-view

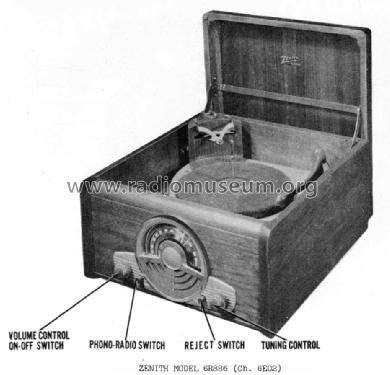

6-R-886 (Ch=6E02) player-view
6-R-886 (Ch=6E02) instruction-view
6-R-886 (Ch=6E02) chassis-view
SAMS Photofact

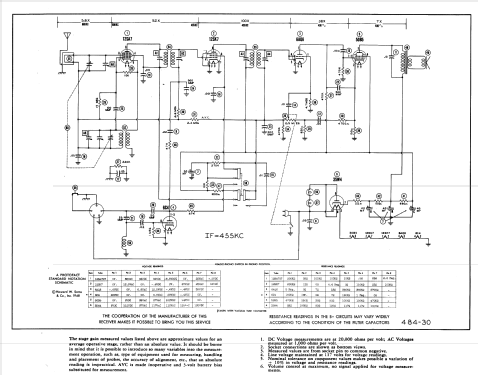

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.3 inch = 13.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6R886 "Modern" Ch= 6E02 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 34, Folder 484-30)
