• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67858

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7G 6H6G 6F5G 6F6G 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

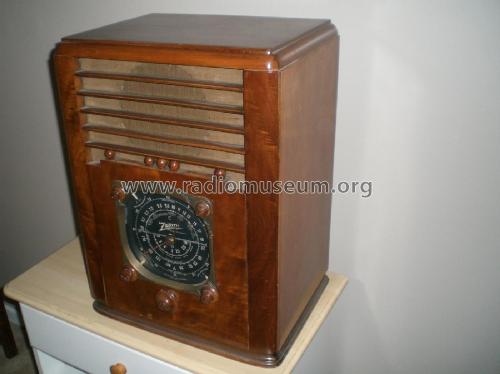

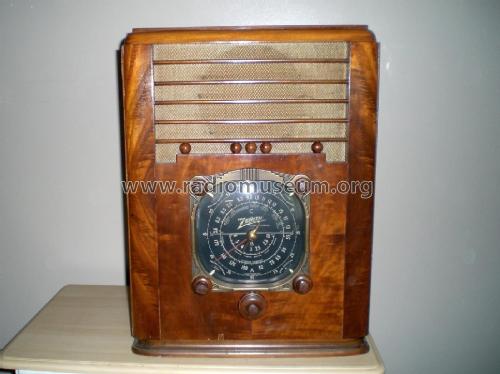

• Model: 6S128 Ch= 5634 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 16.5 x 22.2 x 11.9 inch / 419 x 564 x 302 mm

• Price in first year of sale
• 60.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (4)
• -- Schematic
