• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1942 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67904

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7G7 7J7 7A7 7B6 6K6GT 6X5G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115/225 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

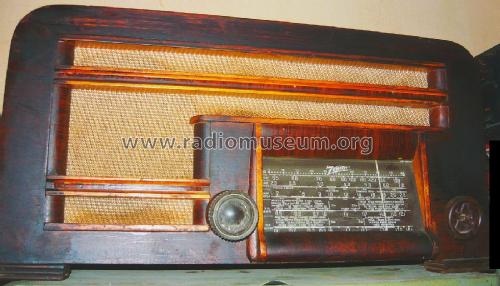

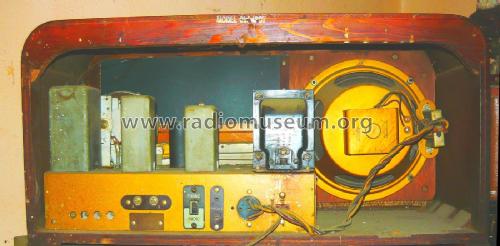

• Model: 6S643BT Ch= 6B16BT - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 530 x 280 x 200 mm / 20.9 x 11 x 7.9 inch

• Notes
• BC and 4xSW

• Net weight (2.2 lb = 1 kg)
• 7.4 kg / 16 lb 4.8 oz (16.3 lb)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before
