6S659(?) unknown
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1942 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331901
-
- alternative name: Chicago Radio Lab
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superhet with RF-stage

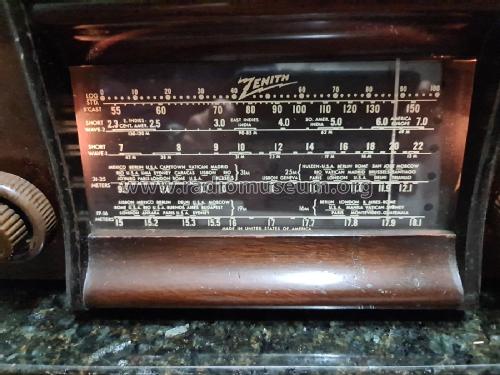

- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker

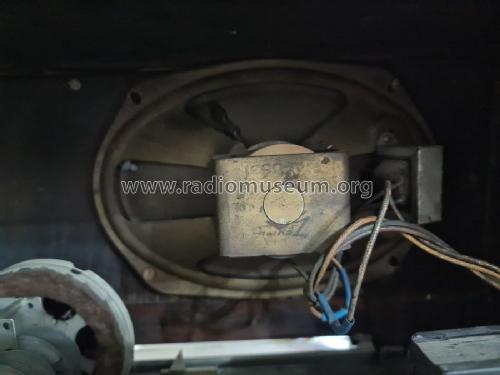

- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6S659unknown - Zenith Radio Corp.; Chicago,
- Shape

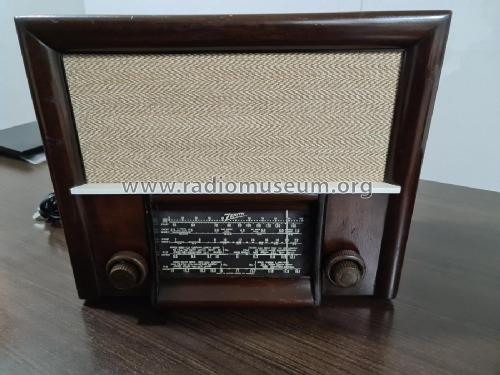

- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 380 x 320 x 240 mm / 15 x 12.6 x 9.4 inch
- Notes
-
Some similarity to Zenith 6S624CT. This may be a model 6S659.
- Author
- Model page created by Renato Nestor Fernandez. See "Data change" for further contributors.
