• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19012

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 58 56 58 58 55 59 59 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

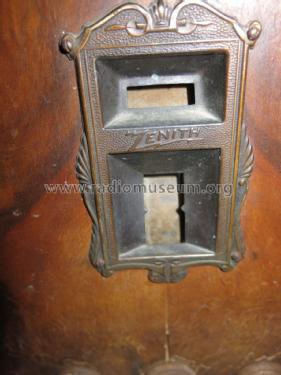

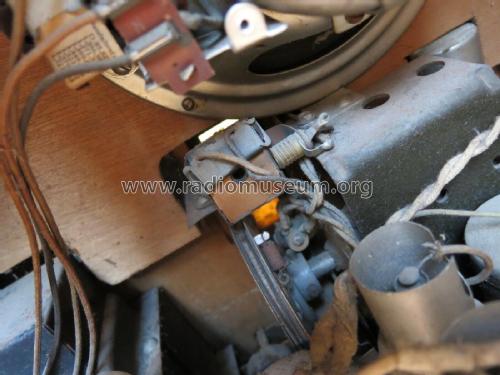

• Model: 756 Ch= 2053 - Zenith Radio Corp.; Chicago,

• Shape
• Console with any shape - in general

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before
