• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67976

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 7H7 6K8GT 7B7 7C6 6L5G 1J6G 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

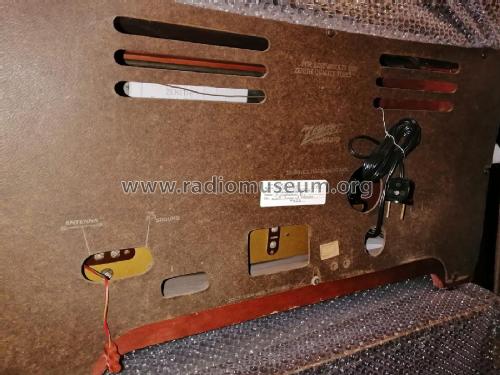

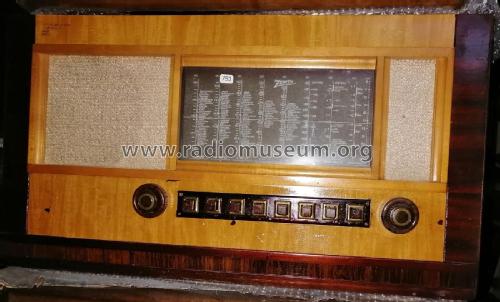

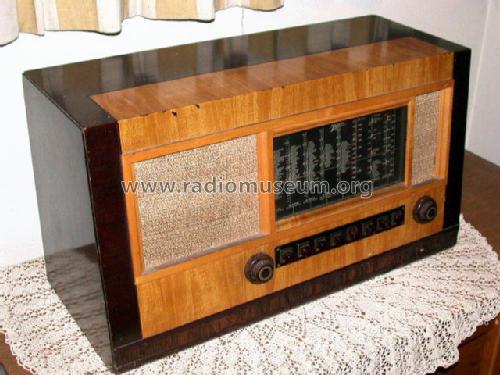

• Model: 7J045T Ch= 7C61T - Zenith Radio Corp.; Chicago,

• Notes
• Farm Radio for either 6V DC (vibrator for +B), or 115-235V AC; eight bands: BC and 7xSW !;

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before
