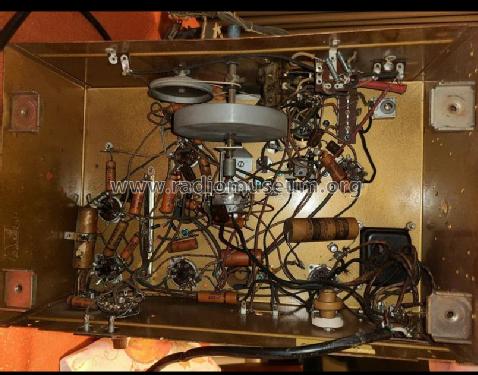

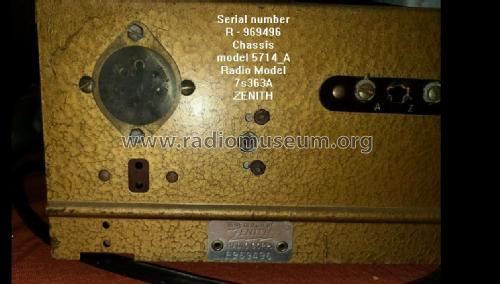

7S363A Ch= 5714A
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 324432
-
- alternative name: Chicago Radio Lab
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Export model
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 110/240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 7S363A Ch= 5714A - Zenith Radio Corp.; Chicago,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 27 x 41.5 x 15.4 inch / 686 x 1054 x 391 mm
- Notes
-
This is the export version of model 7S363. The power supply has multiple taps.
- Price in first year of sale
- 80.00 USD
- Mentioned in
- Zenith Service Manual #1, page 486
- Literature/Schematics (1)
- Bryant and Cones Green Zenith book Chassis info
- Author
- Model page created by John Goller. See "Data change" for further contributors.
