• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72057

• • alternative name: Chicago Radio Lab

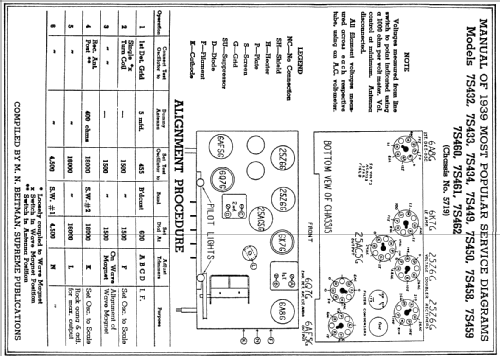

Click on the schematic thumbnail to request the schematic as a free document.

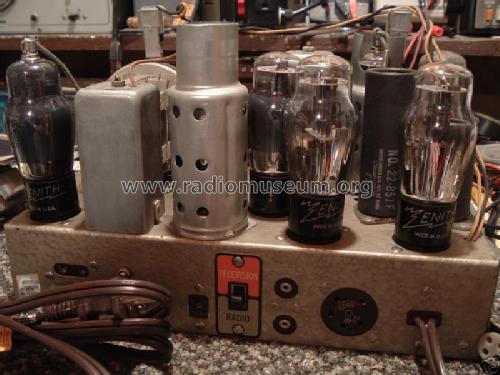

• Number of Tubes
• 7

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6AF5G 25AC5G 25Z6G 25Z6G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 7S432 7-S-432 Ch=5719 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 17.3 x 8.5 x 10.5 inch / 439 x 216 x 267 mm

• Notes
• The Zenith model 7S432 was made in two different versions regarding power supply. Please select the right model page - either mains transformer or voltage doubler for a change or upload etc. The variant is given on both models accordingly. Here a voltage doubler is employed for +B supply.

• Price in first year of sale
• 40.00 $

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Zenith Radio The Glory Years 1936-1945

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
