• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19025

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7 6A8 6K7 6H6 6K7 6F6 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

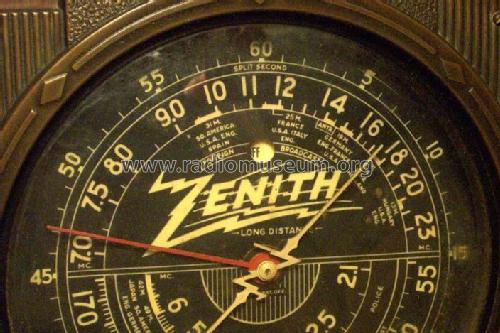

• Model: 7S53 Ch=5704 - Zenith Radio Corp.; Chicago,

• Shape
• Console with any shape - in general

• Notes

• Model 7-S-53-Y use the same cabinet but is Ebony colored. Zenith chassis runs list shows chassis number 5704A. So it is posible a model 7-S-53-A exist.

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before
