• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241896

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6AG5 6SB7Y 6SG7 6SH7 6SH7 6S8GT 25L6GT 25Z6GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/8300 kHz

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

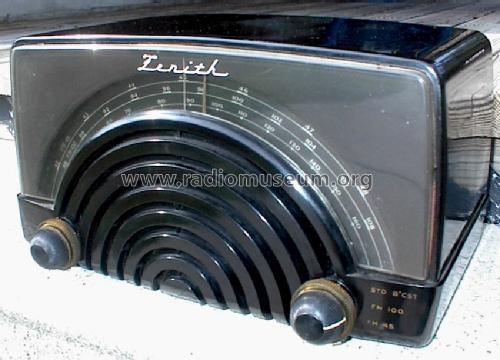

• Model: 8H023Y Ch= 8C01 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13.5 x 7.5 x 7 inch / 343 x 191 x 178 mm

• Notes

• Two FM bands (has both 88 - 108 MHz and prewar FM band).

  Color = black.

• Price in first year of sale
• 70.95 $

• Mentioned in
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)
• Collector's Guide to Antique Radios 4. Edition

• Other Models

• Here you find 4496 models, 4101 with images and 3615 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Zenith Radio Corp.; Chicago, IL
