8H861 Viceroy Ch= 8E20
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72548
-
- alternative name: Chicago Radio Lab

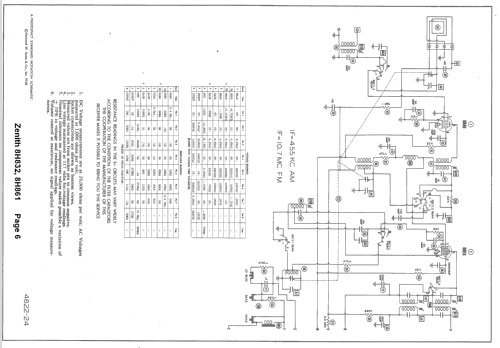

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5.3 inch = 13.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 8H861 Viceroy Ch= 8E20 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Tuning Ranges:BC 540-1620 kc, FM100 88 - 106 mc, FM 45 43 - 48.5 mc. Hand-rubbed, Walnut-finish cabinet.
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set52, Folder 24)
- Literature/Schematics (3)
- -- Original prospect or advert (The Zenith Folder for 1948/1949 Form. R-8107)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
