8ML882Z Ch= 8E82 Lincoln

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1950 ??

Category
Car Radio, perhaps also + sound player/recorder

Radiomuseum.org ID
68093

- alternative name: Chicago Radio Lab

Schematics

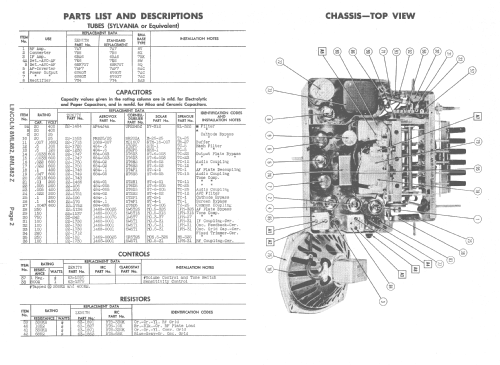

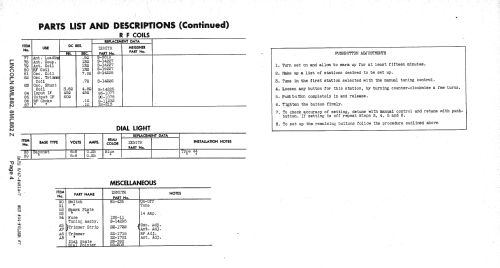

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 278105) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 278106) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 278107) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 278108) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 278109) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 278110) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 278111) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 1389342) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 1389343) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 1389344) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 1389345) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 1389346) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (3)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 764531) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (2)

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 764532) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (2)
Zenith carradio 8-ML-882Z.

8ML882Z Ch= 8E82 Lincoln; Zenith Radio Corp.; (ID = 307851) Car Radio — Zenith Radio Corp.; 8ML882Z Ch= 8E82 Lincoln (2)
Copy from Raiders

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
8

Valves / Tubes
7A7 7B8 6BA6 7E6 or 6SR7GT 7AF7 6V6GT 6V6GT 7Y4

Main principle
Superhet with RF-stage; ZF/IF 265 kHz; 2 AF stage(s)

Tuned circuits
8 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Storage Battery for all (e.g. for car radios and amateur radios) / =6 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Material
Metal case

from Radiomuseum.org
Model: 8ML882Z Ch= 8E82 Lincoln - Zenith Radio Corp.; Chicago,

Shape
Chassis only or for «building in»

Notes
Vibrator for +B; 6" x 9" PM elliptical speaker; Push-pull output stage.

External source of data
Ernst Erb

Circuit diagram reference
Rider's Perpetual, Volume 20 covering 1950

Mentioned in
Photofact Folder, Howard W. SAMS (Vol.5 8/48 4814-7 Set 44 Folder 7)
