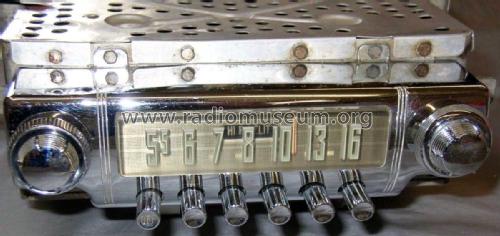

8ML982Z Ch= 8E82 Lincoln
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1951 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 68095
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 265 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / =6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: 8ML982Z Ch= 8E82 Lincoln - Zenith Radio Corp.; Chicago,
- Shape
- Chassis only or for «building in»
- Notes
- Vibrator for +B; 6" x 9" PM elliptical speaker; Push-pull output stage.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
