• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68098

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6C5 6K7 6A8 6K7 6H6 6F5 6F6 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org

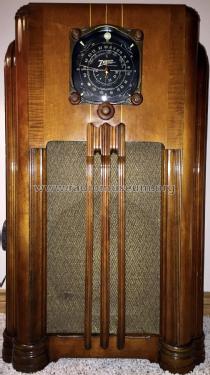

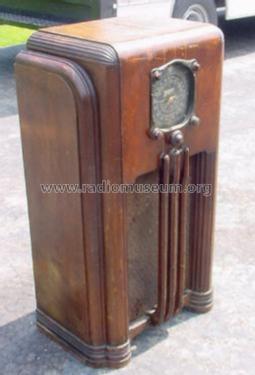

• Model: 8S154 8-S-154 Ch=5801 - Zenith Radio Corp.; Chicago,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 24.8 x 41.3 x 15.4 inch / 630 x 1049 x 391 mm

• Price in first year of sale
• 90.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Zenith Radio The Glory Years 1936-1945

• Literature/Schematics (2)
• Pre-War Consoles

• Other Models

• Here you find 4496 models, 4101 with images and 3615 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Zenith Radio Corp.; Chicago, IL
