• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68110

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 1232 6A8G 6K7G 6J5G 6F5G 6P5G 6AC5G 6X5G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

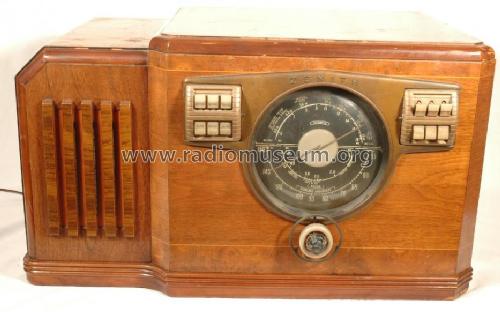

• Model: 8S531 Ch= 8A02 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 25 x 14.1 x 15 inch / 635 x 358 x 381 mm

• Price in first year of sale
• 60.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Zenith Radio The Glory Years 1936-1945

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 173.)
