• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68132

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6AG5 6SB7Y 6SG7 6SH7 6SH7 6S8GT 6K6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 9H081 Conventional Ch=8C21 - Zenith Radio Corp.; Chicago,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 0 x 36 x 0 inch / 0 x 914 x 0 mm

• Notes

• Old and new FM. Walnut cabinet with phono roll-out and record storage.

• Price in first year of sale
• 269.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

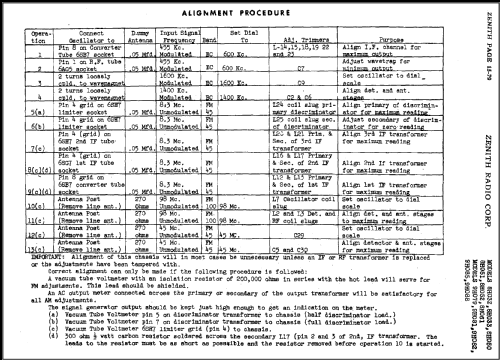

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Dat 11-46, Set 7, Folder 467-34)

• Literature/Schematics (3)
• -- Original prospect or advert (The Zenith Folder unknown date.)
