• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73490

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

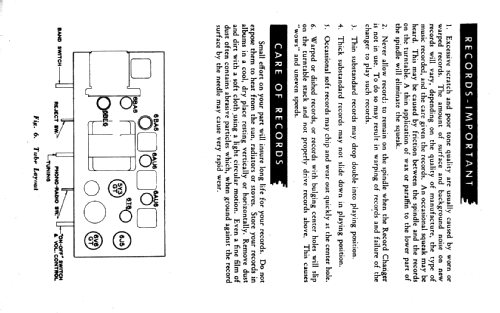

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AU6 6AU6 6T8 6V6GT 6J5 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details

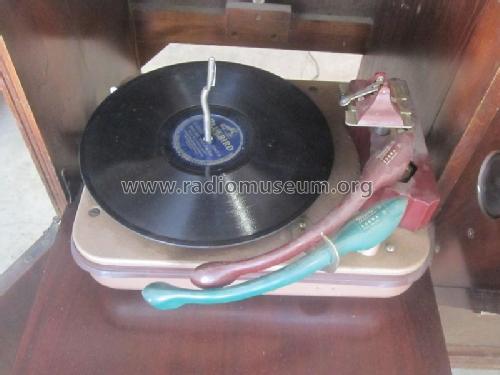

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 9H995 Ch= 9E21Z - Zenith Radio Corp.; Chicago,

• Shape
• Console with any shape - in general

• Notes

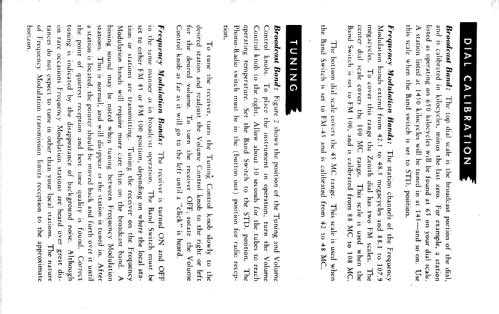

• Operating Frequencies:
  BC 540 to 1600kc
  FM1 42 to 49 mc
  FM2 88 to 108 mc.

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 74, Folder 12)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
