• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1935 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19026

• • alternative name: Chicago Radio Lab

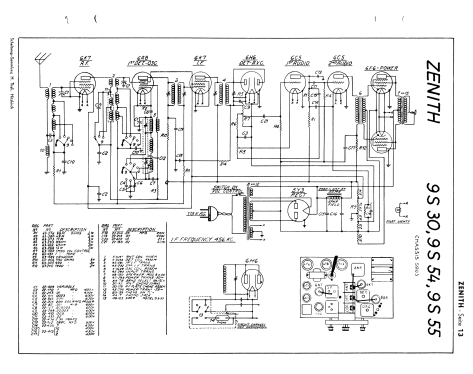

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6K7 6A8 6K7 6H6 6C5 6C5 6F6 6F6 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

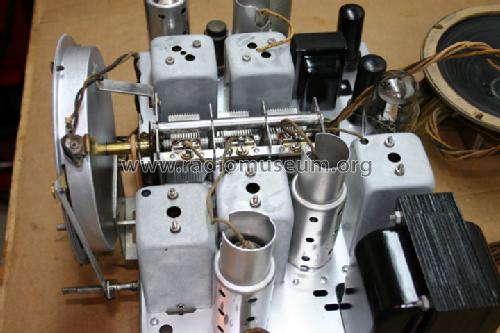

• Model: 9S30 Ch= 5903 - Zenith Radio Corp.; Chicago,

• Shape

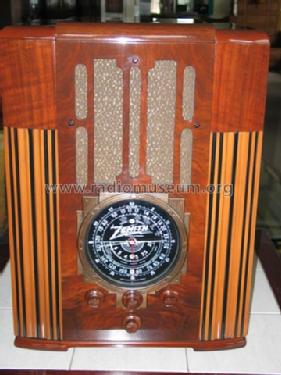

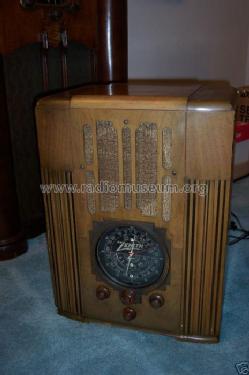

• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 0 x 22 x 0 inch / 0 x 559 x 0 mm

• Notes

• The cabinet of model 9S30 is similar to models 9S30(Y) ebony, 9S30A and 9A30A.

• Price in first year of sale
• 85.00 $

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Cathedral & Tombstone Radios (page 280.)
