A2250M Ch= 17A20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1957 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
316781

- alternative name: Chicago Radio Lab

Schematics

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564660) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564661) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564662) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564663) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564664) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564665) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564666) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564667) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564668) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564669) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564670) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564671) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564672) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564674) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564675) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564676) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564677) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564678) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564679) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2564680) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2468137) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (3)

A2250M Ch= 17A20; Zenith Radio Corp.; (ID = 2469454) Television — Zenith Radio Corp.; A2250M Ch= 17A20 (2)
Copy from Ebay seller hapyselers.

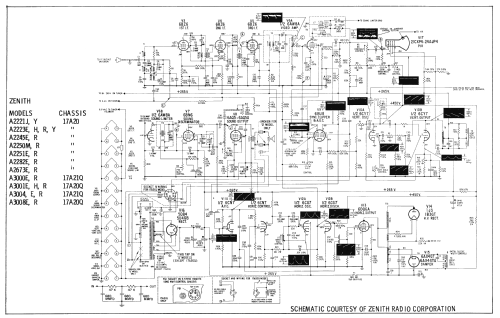

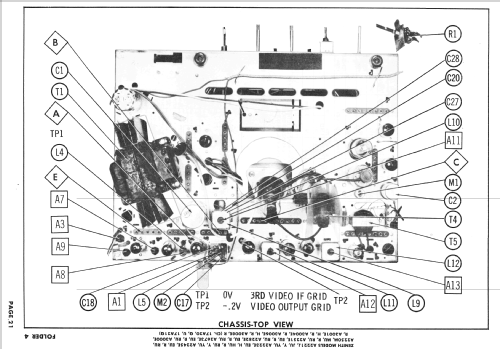

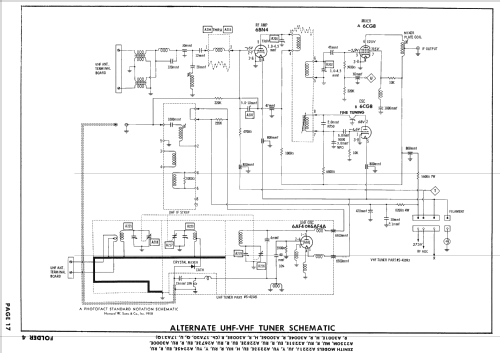

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
6BN4 6CG8 6BZ6 6BZ6 6BZ6 6AW8A 6BU8 6BN6 6AQ5 6CY7 6CN7 6CG7 6DQ6A 6AX4GT 1B3GT or 1J3GT 5U4GA or 5AU4 21CXP4

Main principle
Superhet with RF-stage

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Wooden case

from Radiomuseum.org
Model: A2250M Ch= 17A20 - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Notes
Zenith model A2250M is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 17A20, VHF tuner S-41692 and picture tube 21CXP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 377 Folder 19-S dated 11-57)

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 393 Folder 4 dated 3-58)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
