A2252R Ch= 17A30
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 184909
-
- alternative name: Chicago Radio Lab
Copy from Zenith Folder.

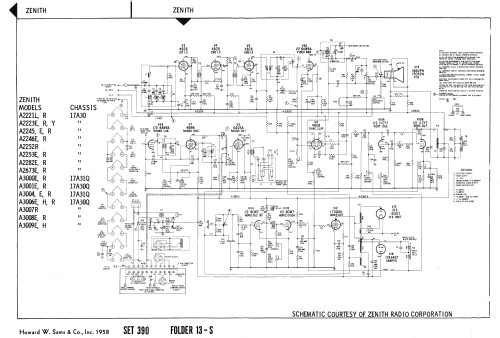

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BN4 6CG8A 6BZ6 6BZ6 6DK6 6CX8 6BU8 6BN6 6AQ5A 6CY7 6CN7 6CG7 6DQ6A 6AX4GT 1J3 or 1B3GT 5U4GB or 5AU4 21CXP4 or 24AJP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: A2252R Ch= 17A30 - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Zenith model A2252R is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 17A30, VHF tuner S-42843 and picture tube 21CXP4 or 24AJP4.
- Literature/Schematics (1)

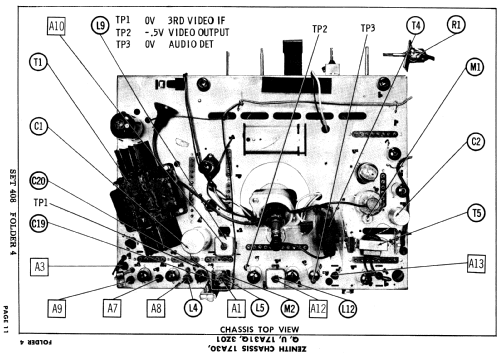

- Photofact Folder, Howard W. SAMS (Date 8-58, Set 408, Folder 4)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 390 Folder 13-S dated 3-58)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
