A2330R Ch= 19A20
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 316715
-
- alternative name: Chicago Radio Lab
Copy from Zenith folder.

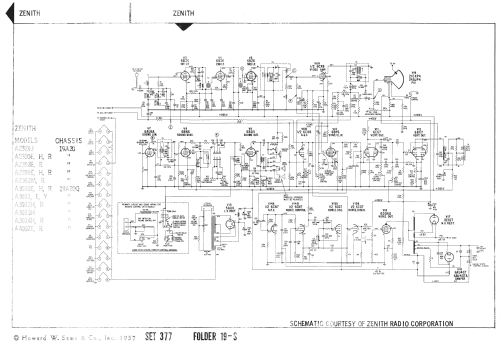

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6BK7A 6U8 6BZ6 6BZ6 6BZ6 6CX8 6AU6A 6BN6 EL84 or 6BQ5 6BY6 6CG7 6BX7GT 6CN7 6CG7 6DQ6A 6AU4GTA 1B3GT 5AU4 21CXP4
- Main principle
- Superhet with RF-stage
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: A2330R Ch= 19A20 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Zenith model A2330R is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 19A20, VHF tuner S-41712 and picture tube 21CXP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 377 Folder 19-S dated 11-57)
- Literature/Schematics (2)

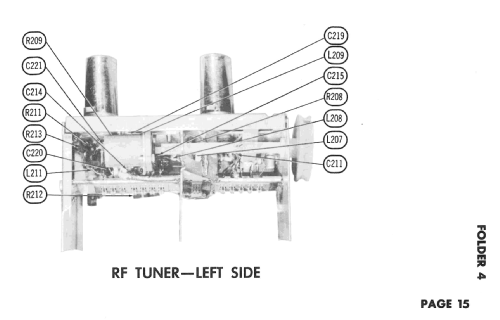

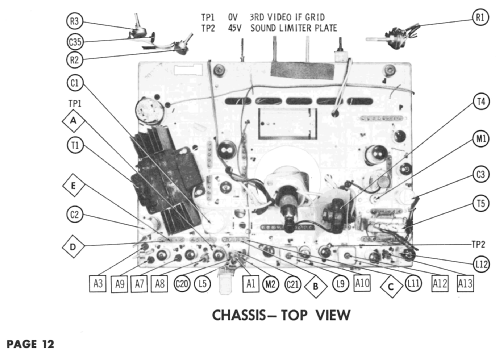

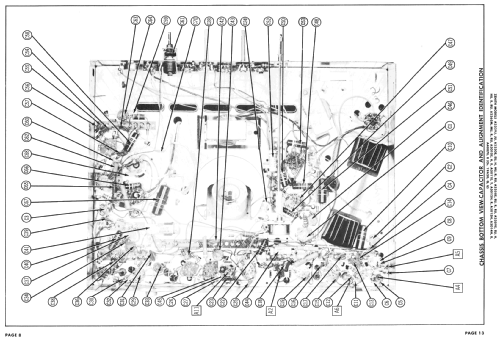

- Photofact Folder, Howard W. SAMS (Set 394 Folder 4 dated 4-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
