A2359E Ch= 19A20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1957 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
316718

- alternative name: Chicago Radio Lab

Schematics

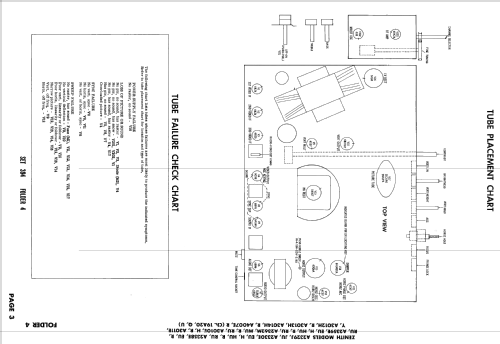

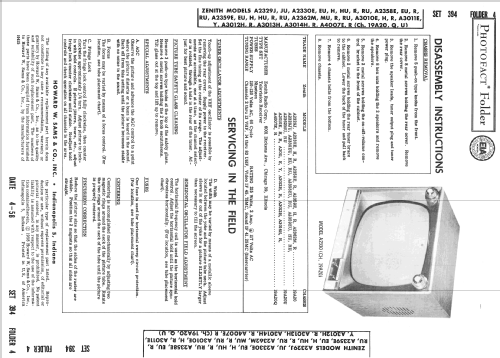

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573291) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573292) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573293) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573294) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573295) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573296) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573297) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573298) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573299) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573300) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573301) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573302) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573303) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573304) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573305) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573306) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2573307) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2467850) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (3)

A2359E Ch= 19A20; Zenith Radio Corp.; (ID = 2469446) Television — Zenith Radio Corp.; A2359E Ch= 19A20 (2)
Copy from Zenith folder.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
19

Valves / Tubes
6BK7A 6U8 6BZ6 6BZ6 6BZ6 6CX8 6AU6A 6BN6 EL84 or 6BQ5 6BY6 6CG7 6BX7GT 6CN7 6CG7 6DQ6A 6AU4GTA 1B3GT 5AU4 21CXP4

Main principle
Superhet with RF-stage

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
2 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: A2359E Ch= 19A20 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Notes
Zenith model A2359E is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 19A20, VHF tuner S-41712 and picture tube 21CXP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 377 Folder 19-S dated 11-57)

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 394 Folder 4 dated 4-58)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
