A2362M Ch= 19A20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1957 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
316721

- alternative name: Chicago Radio Lab

Schematics

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573342) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573343) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

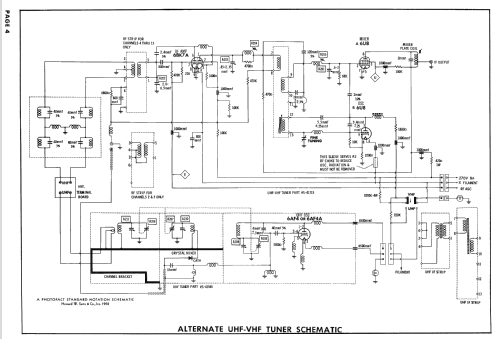

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573344) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

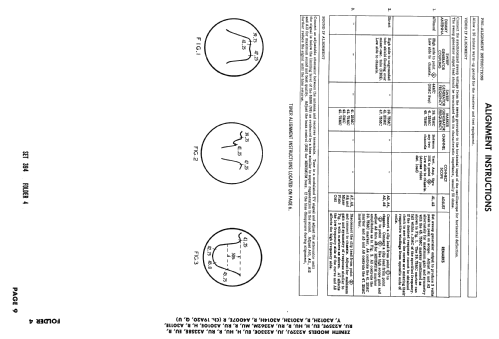

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573345) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573346) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573347) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573348) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573349) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

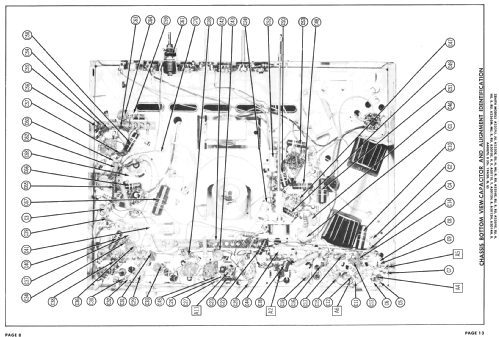

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573350) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573351) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573352) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573353) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573354) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573355) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573356) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573357) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2573358) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

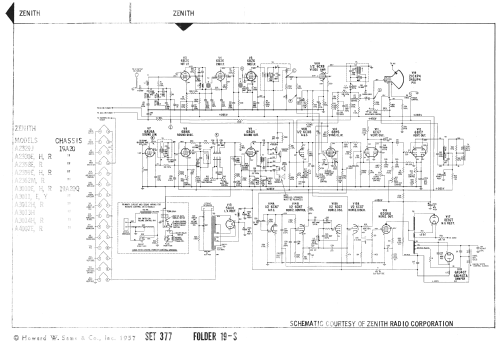

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2467853) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (3)

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2469449) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (2)
Copy from Ebay seller medivalironman.

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2469452) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (2)
Copy from Ebay seller medivalironman.

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2469450) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (2)
Copy from Ebay seller medivalironman.

A2362M Ch= 19A20; Zenith Radio Corp.; (ID = 2469451) Television — Zenith Radio Corp.; A2362M Ch= 19A20 (2)
Copy from Ebay seller medivalironman.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
19

Valves / Tubes
6BK7A 6U8 6BZ6 6BZ6 6BZ6 6CX8 6AU6A 6BN6 EL84 or 6BQ5 6BY6 6CG7 6BX7GT 6CN7 6CG7 6DQ6A 6AU4GTA 1B3GT 5AU4 21CXP4

Main principle
Superhet with RF-stage

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
2 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: A2362M Ch= 19A20 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Notes
Zenith model A2362M is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 19A20, VHF tuner S-41712 and picture tube 21CXP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 377 Folder 19-S dated 11-57)

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 394 Folder 4 dated 4-58)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
