A2673R Ch= 17A20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1957 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
316788

- alternative name: Chicago Radio Lab

Schematics

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564952) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564953) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

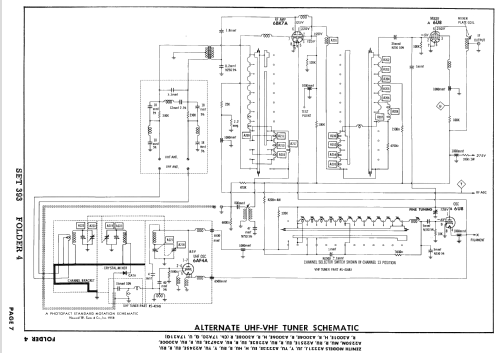

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564954) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564955) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564956) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564957) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564958) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564959) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564960) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564961) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564962) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

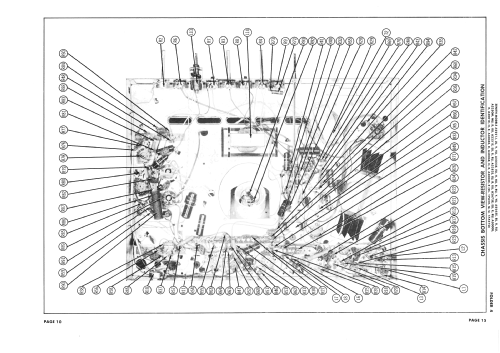

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564963) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564964) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564965) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564966) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564967) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564968) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564969) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564970) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2564971) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2468149) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (3)

A2673R Ch= 17A20; Zenith Radio Corp.; (ID = 2468496) Television — Zenith Radio Corp.; A2673R Ch= 17A20 (2)
Copy from Zenith folder.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
6BN4 6CG8 6BZ6 6BZ6 6BZ6 6AW8A 6BU8 6BN6 6AQ5 6CY7 6CN7 6CG7 6DQ6A 6AX4GT 1B3GT or 1J3GT 5U4GA or 5AU4 21CXP4

Main principle
Superhet with RF-stage

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Wooden case

from Radiomuseum.org
Model: A2673R Ch= 17A20 - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Notes
Zenith model A2673R is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 17A20, VHF tuner S-41692 and picture tube 21CXP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 377 Folder 19-S dated 11-57)

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 393 Folder 4 dated 3-58)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
