• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73501

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

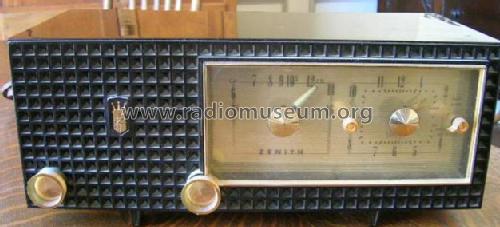

• Model: A519Y Ch= 5A07 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• The Zenith Modell A519Y is an AC Operated 5 Tube AM Superheterodyne Receiver with Electric Clock.

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 10-58, Set 418, Folder 13)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
