A-510-F Ch= 5-A-10 (post war)

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1956 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
173227

- alternative name: Chicago Radio Lab

Schematics

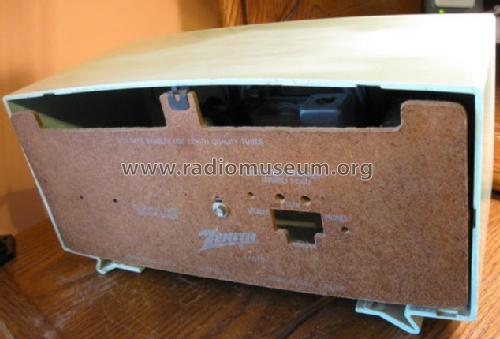

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 869879) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 869881) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 869880) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 869883) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 869885) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 869882) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 869884) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 869886) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)

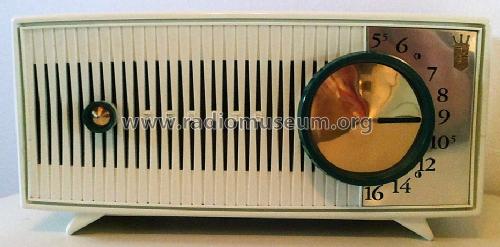

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 1389076) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)
Ebay Seller souveteck Item No.: 181068828390

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 1389077) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)
Ebay Seller souveteck Item No.: 181068828390

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 1389078) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)
Ebay Seller souveteck Item No.: 181068828390

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 1389079) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)
Ebay Seller souveteck Item No.: 181068828390

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 1389080) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (2)
Ebay Seller souveteck Item No.: 181068828390

A-510-F Ch= 5-A-10 ; Zenith Radio Corp.; (ID = 2903366) Radio — Zenith Radio Corp.; A-510-F Ch= 5-A-10 (1)
RECONSTRUCTED LABEL

Technical Specifications

Number of Tubes
5

Valves / Tubes
12BE6 12BA6 12AV6 50C5 35W4

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Wave bands
Broadcast only (MW).

Power type and voltage
AC/DC-set / 117 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: A-510-F Ch= 5-A-10 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Notes
Color: light turquoise.

Author
Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
