• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18980

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 24 24 24 45 45 80

• Main principle
• TRF without regeneration

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

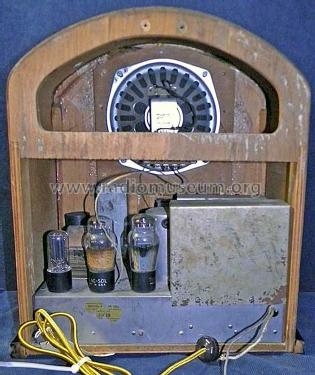

• Model: A Zenette Ch= 2004 - Zenith Radio Corp.; Chicago,

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Notes
• Gothic style

• Price in first year of sale
• 58.00 $

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Zenith Radio The Early Years 1919-1935

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Radio Collector`s Guide 1921-1932

• Literature/Schematics (1)
• Cathedral & Tombstone Radios (page 287.)
