• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1974 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200065

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

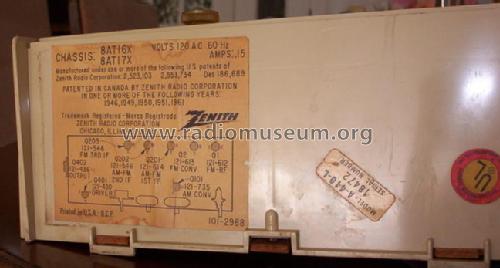

• Model: A-410-L Ch= 8AT16X, 8AT17X - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 300 x 170 x 120 mm / 11.8 x 6.7 x 4.7 inch

• Notes

• Solid State Tabletop AM/FM Radio Model Zenith A-410-L Ch= 8AT16X, 8AT17X (clock version)

  AFC

  Chassis is directly connected to one side of A.C. Line !

  Same model, different case color, is the Zenith A-410-W.
  The clock version is the Zenith A-466-A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 1422, Folder SED, Sept. 1974)

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
