B516G "The Deluxe" Ch= 5A09
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 240188
-
- alternative name: Chicago Radio Lab
Picture from 1960 Zenith sales brochure

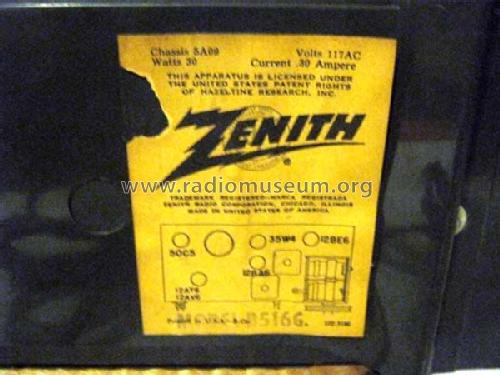

RECONSTRUCTED LABEL
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: B516G "The Deluxe" Ch= 5A09 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 12.875 x 5.625 x 6.375 inch / 327 x 143 x 162 mm
- Notes
-
Operates appliances with up to 1100 watts.
The following models use the same schematic and cabinet but have different cabinet colors. All have Roman Gold trim.
Model
Cabinet Color
B516G
Slate Gray
B516L
French Beige
B516W
Sandstone White
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 10-58, Set 418, Folder 13 (chassis 5A09))
