C2330E, R, C2358E, R, W Ch= 18C20
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 155650
-
- alternative name: Chicago Radio Lab
With courtesy by history TV.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: C2330E, R, C2358E, R, W Ch= 18C20 - Zenith Radio Corp.; Chicago,
- Shape
- Console with any shape - in general
- Notes

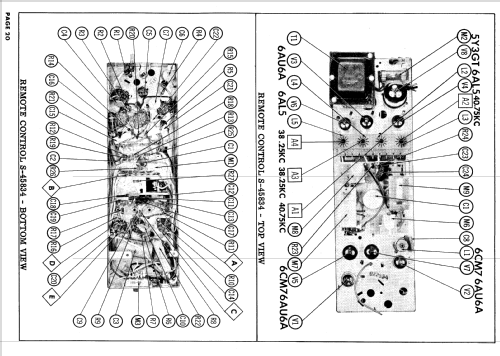

- 21" Television Receiver with Remote Control.
Picture tube: 21CPX4
Tuning Range: TV - Channels 2 thru 13, 14 thru 84 UHF.
- Literature/Schematics (1)

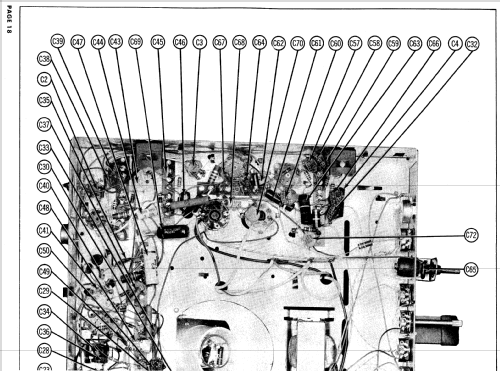

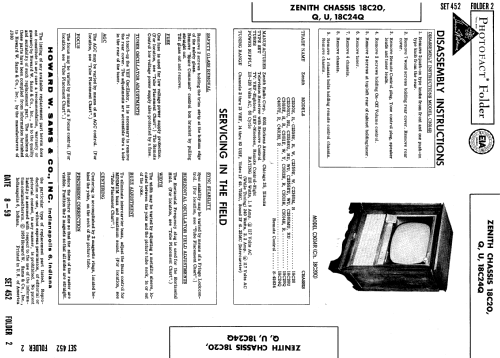

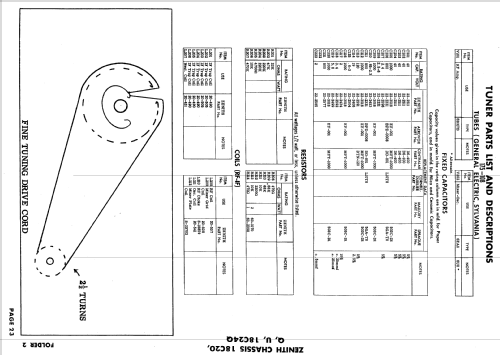

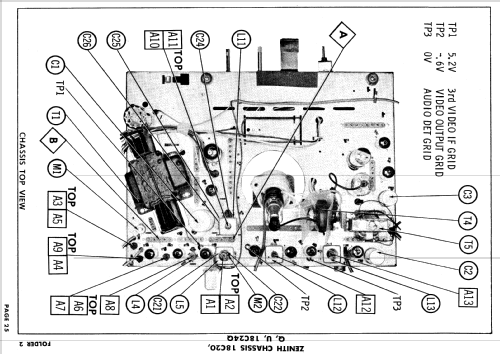

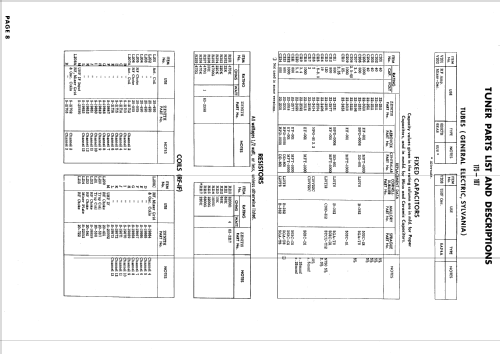

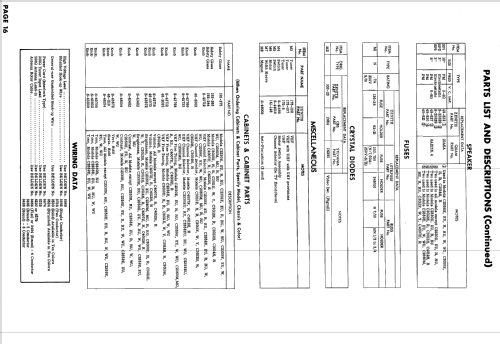

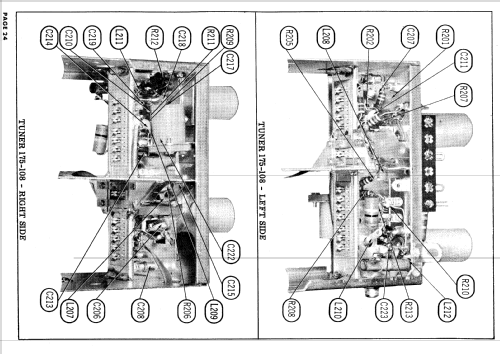

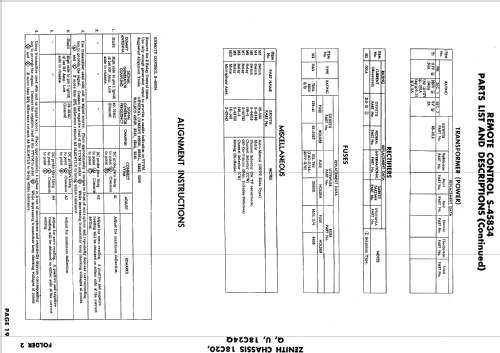

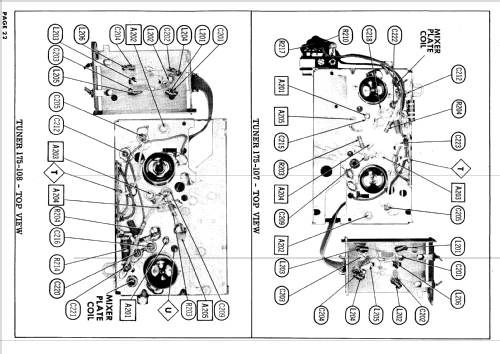

- Photofact Folder, Howard W. SAMS (Date 8-59, Set 452, Folder 2)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
