• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79091

• • alternative name: Chicago Radio Lab

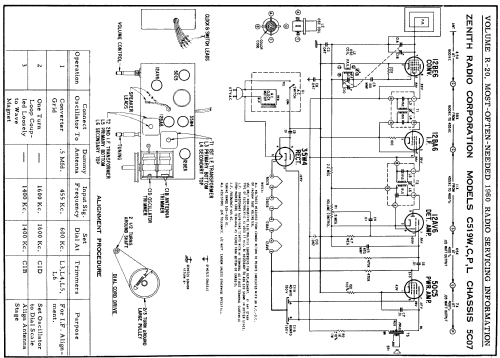

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110 to 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

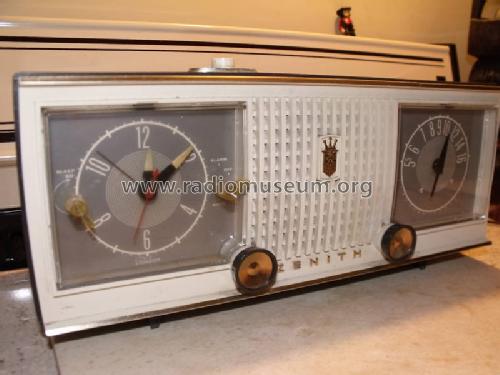

• Model: C519C "The Nocturne" Ch= 5C07 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 13.5625 x 5.75 x 6.4375 inch / 344 x 146 x 164 mm

• Notes

• The Zenith C519C is an AC operated 5 tube BC band clock radio. The BC band frequency tuning range is 535 to 1620kHz.  Has built-in loop antenna.

  The following models use the same schematic and cabinet but have different color combinations:

  Model	Color
  C519C	Charcoal with White grille
  C519L	Beige with White grille
  C519P	Yellow with Brown grille
  C519W	White with Charcoal knob

  NOTE: The SAMS Photofact Set 418, Folder 13 calls out models A516G, L, W and A519F, V, Y using chassis 5A07 and 5A09. However the SAMS index for models C519C, L, P and W refers to this same Set and Folder and so therefore is applicable for this model also.

  WARNING:  One side of the AC line is connected to the chassis.  When servicing this radio, an isolation transformer should be used between the power line and the radio.

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 20, 1960 (Page 169)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 418, folder 13 dated 10-58)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
