D2355E, L, R, W, EU, LU, RU, WU Ch= 16D21, U
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959/1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 134346
-
- alternative name: Chicago Radio Lab
Zenith model D2353 Ebay sller redfrogone.
Zenith model D2353 Ebay sller redfrogone.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 21CXP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: D2355E, L, R, W, EU, LU, RU, WU Ch= 16D21, U - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
- ~21" b/w TV with US standard VHF "Target Turret" tuner. An additional suffix "U" stands for factory equipped with continuous UHF tuner. Exactly tube quantity unknown.
- Source of data
- -- Original-techn. papers.
- Literature/Schematics (1)

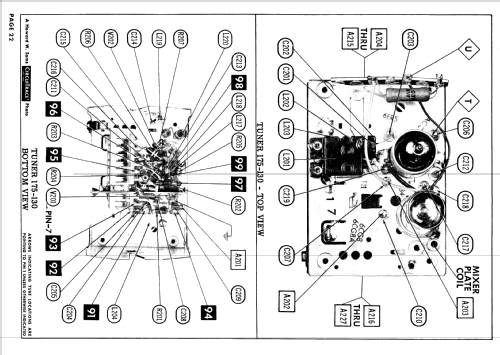

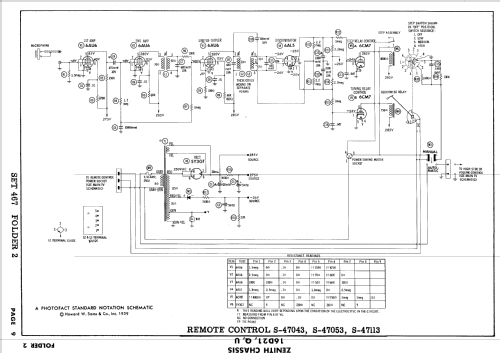

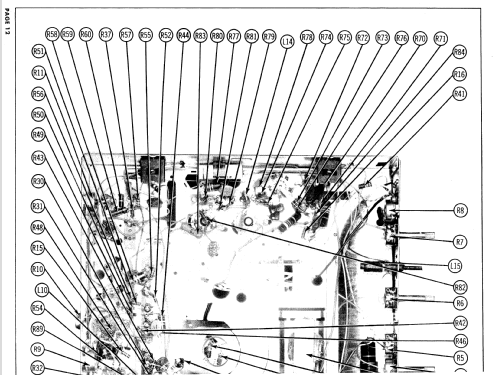

- Photofact Folder, Howard W. SAMS (Date 12-59, Set 467, Folder 2)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
