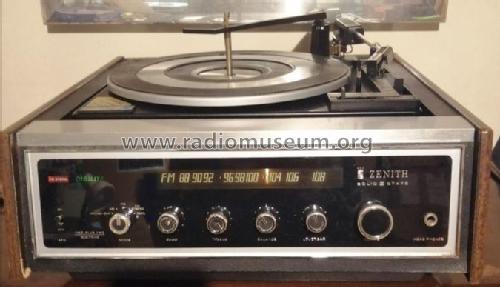

Digilite Two Plus Two Matrix Ch= 5WFR51, 5WFR53
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335123
-
- alternative name: Chicago Radio Lab
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org
- Model: Digilite Two Plus Two Matrix Ch= 5WFR51, 5WFR53 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 410 x 410 x 250 mm / 16.1 x 16.1 x 9.8 inch
- Notes
-
There are two chassis referenced on the label and there are separate Photofacts for each. It is not known which chassis specifically refers to this model.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 1512, Folder 4, October 1975 (5WFR51))
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 1548, Folder 4, March 1976 (5WFR53))
- Author
- Model page created by Theodore Stinis. See "Data change" for further contributors.
