G510Y Ch= 5G02

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1950 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
244503

- alternative name: Chicago Radio Lab

Schematics

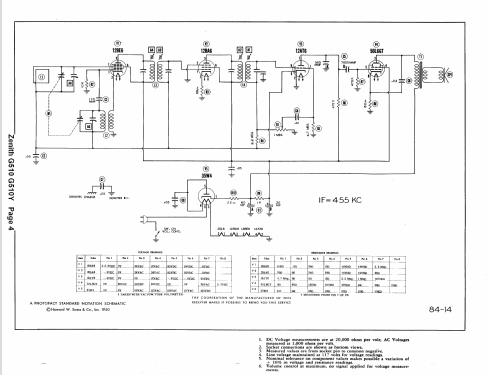

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 1569303) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (3)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 1569304) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (3)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 1569305) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (3)

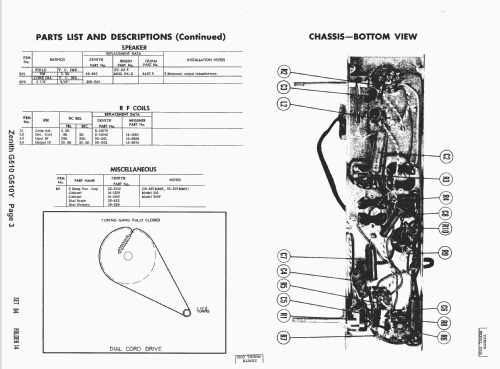

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 1569306) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (3)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2154854) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (2)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2154857) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (2)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2154855) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (2)

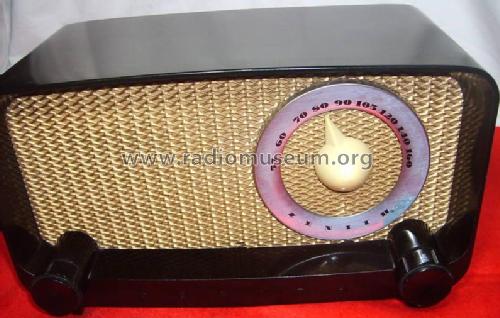

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 1747353) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (2)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2154856) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (2)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 1566026) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (2)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2220737) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2220739) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2220740) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2220741) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2220742) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2220743) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2220744) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2220745) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2525123) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2525124) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

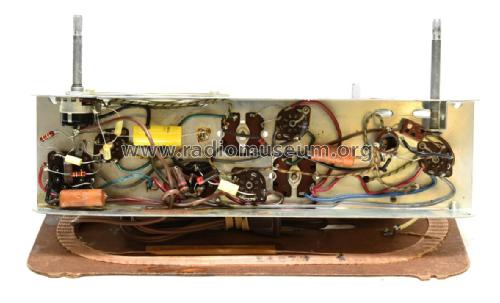

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2525125) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2525126) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2525127) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2525128) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2525129) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

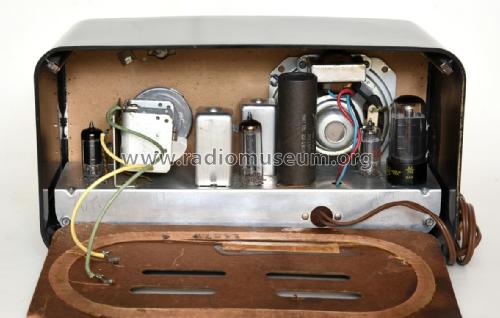

G510Y Ch= 5G02; Zenith Radio Corp.; (ID = 2525130) Radio — Zenith Radio Corp.; G510Y Ch= 5G02 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
12BE6 12BA6 12AT6 50L6GT 35W4

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

Material
Bakelite case

from Radiomuseum.org
Model: G510Y Ch= 5G02 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Mentioned in
Photofact Folder, Howard W. SAMS (Vol.9/50 Date 1-50 84-14 Set 84 Folder 14)

Author
Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
