G723 Ch= 7G04
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68192
-
- alternative name: Chicago Radio Lab
Rider

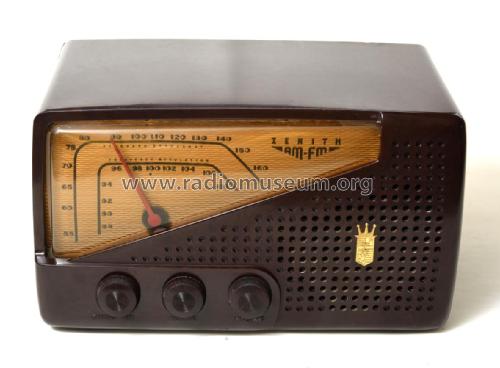

Zenith G723 Front View

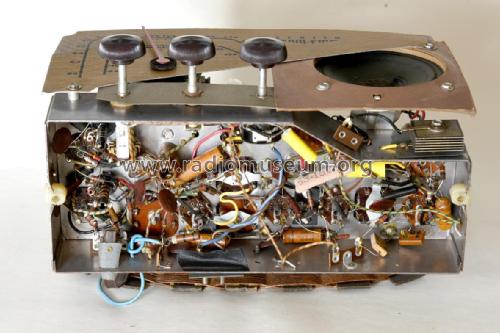

Zenith G723 Chassis after Restoration

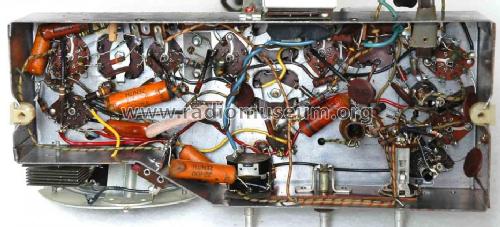

Zenith G723 Rear View

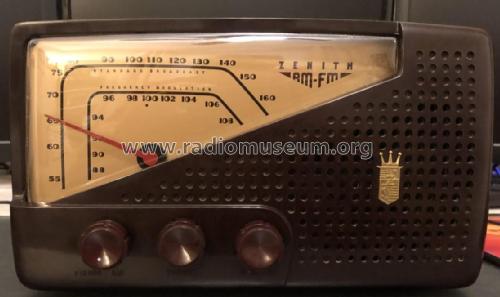

Zenith G723 Front / Top View
Zenith G723 Top/Side/Front
Zenith G723 Label
from ebay
from ebay
RECONSTRUCTED LABEL

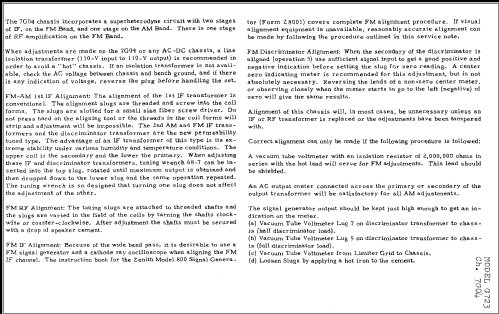

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: G723 Ch= 7G04 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 7 x 6.625 inch / 305 x 178 x 168 mm
- Notes
-
The cabinet material is uncertain.
See also the models reported under R721.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
