G725 Ch= 7G01
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68194
-
- alternative name: Chicago Radio Lab
Beitman
Rider
Copy gen. von Radio Attic
copy from eBay seller: pita411 (USA).
copy from eBay seller: pita411 (USA).
copy from eBay seller: pita411 (USA).
copy from eBay seller: pita411 (USA).
Eigene Ebay Auktion.
eBay Item Number: 130928717267
eBay Item Number: 330938737264
zenith detail missing
RECONSTRUCTED LABEL
Showing tubes, speaker and loop antenna.

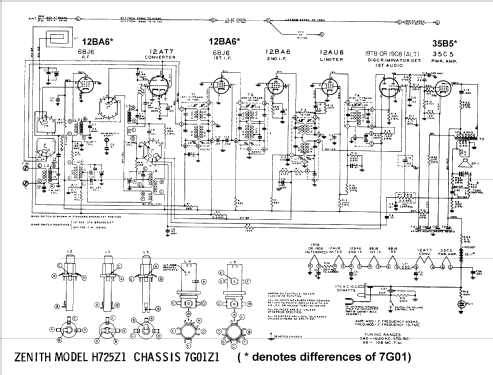

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: G725 Ch= 7G01 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15 x 9 x 7.75 inch / 381 x 229 x 197 mm
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 101, Folder 18, Date 7-50)
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 327.)
- Other Models
-
Here you find 4496 models, 4099 with images and 3615 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Collections
The model G725 is part of the collections of the following members.
Forum contributions about this model: Zenith Radio Corp.;: G725 Ch= 7G01
Threads: 2 | Posts: 7
I have three of these radios. They share the same problem: No FM reception.
I have:
1. Replaced all ceramic and electrolytic capacitors
2. Swapped out tubes
3. Cleaned all switch contacts
4. Checked or repaced all resistors
5. Replaced selenium rectifiers with diodes.
AM reception is excellent. No FM at all.
Ideas?
Thanks!
Steve Goodwin, 10.Jan.13
Statt der 19T8 montierte das Gerät alternativ auch die 19C8.
Die Variante 7G01Z1 montierte folgende Bestückung:
6BJ6 12AT7 6BJ6 12BA6 12AU6 19T8 35C5
Die Variante 7G01Z1 montierte folgende Bestückung:
6BJ6 12AT7 6BJ6 12BA6 12AU6 19T8 35C5
Ralf Sürtenich, 24.Mar.04
