H2439R Ch= 24H20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1951 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
342623

- alternative name: Chicago Radio Lab

Schematics

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830682) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830683) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830684) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830685) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830686) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830687) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830688) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830689) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830690) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830691) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

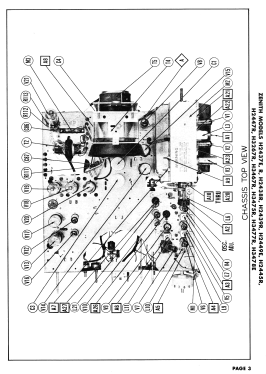

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830692) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830693) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830694) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830695) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830696) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

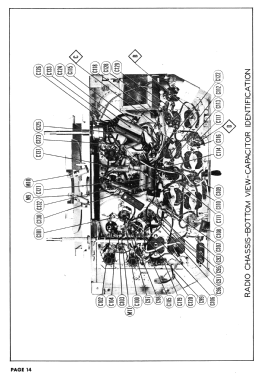

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830697) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830698) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830699) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830700) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830701) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830702) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830703) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2830704) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (3)

H2439R Ch= 24H20; Zenith Radio Corp.; (ID = 2941398) Television — Zenith Radio Corp.; H2439R Ch= 24H20 (2)
Copy from Zenith catalog.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
24

Valves / Tubes
6CB6 6CB6 6C4 6AU6 6AU6 6AU6 6AU6 12AT7 12AU7 6BN6 6BF5 6BN6 6SN7GT 6SN7GT 6SN7GTA 6AL5 6SN7GT 6BQ6GT 6BQ6GT 6W4GT 1B3GT 5U4G 5Y3G 16GP4

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Wooden case

from Radiomuseum.org
Model: H2439R Ch= 24H20 - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Notes
Zenith model H2439R is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 24H20, a VHF tuner and picture tube 16GP4.Tubes V10 and V12 are indicated as 6BN6 in the schematic and in the parts list they are named as 6BN6GT.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 120 folder 13 dated 1-51)
