H3274R Ch= 22H21 , Ch= 10H20Z
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 351338
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 32
- Valves / Tubes
- 6CB6 6CB6 6C4 6AU6 6AU6 6AU6 6AU6 12AT7 12AU7 6SN7GT 6BN6 6BF5 6BN6 6BL7GT 6AL5 or 6H6 6SN7GT 6BQ6GT 6W4GT 1B3GT 5Y3GT 5U4G 6BA6 12AT7 6BA6 6BA6 6AU6 6T8 9002 6V6GT 6V6GT 5Y3GT 17BP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: H3274R Ch= 22H21 , Ch= 10H20Z - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Zenith model H3274R is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 22H21, radio chassis 10H20Z, TV-AM-FM phono combination receiver, a VHF tuner and picture tube 17BP4.
- Literature/Schematics (1)

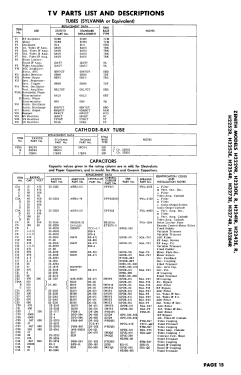

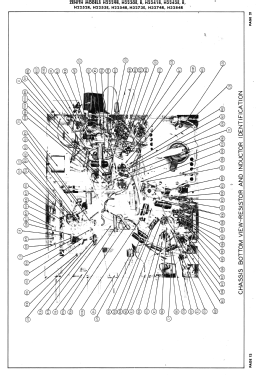

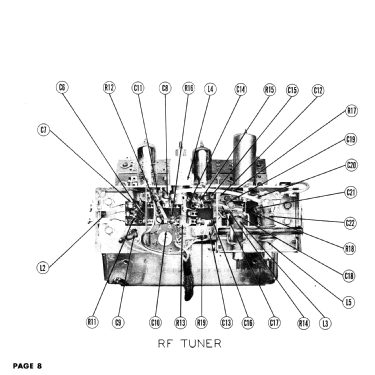

- Photofact Folder, Howard W. SAMS (Set 151, folder 13, dated 11-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
